In this case, "Shameless" is defined by the owner's wife
when describing the amount of money that was
spent on this multiple award winning Chevy C10. Let's face
it, trucks are hot and this rig takes it to the next
level with incredible attention to detail, creativity
and modern technology. From concept to completion, there
are countless hours of creative time and energy
that went into this Drivable work of art and the end result is simply scrumptious...

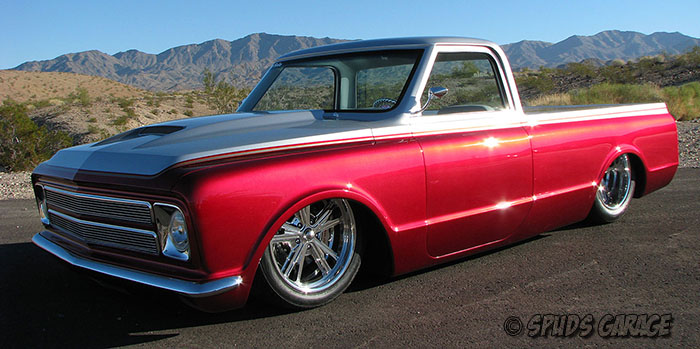

Finished in a delightful blend of custom colors by "Hot
Hues", the bright silver upper body is Cosmic Dust
complimented with a special blend of Candy Apple Red on
the bottom. Smooth and crisp, the extremely
creative body modifications and custom features are so
extensive, its almost impossible to catch them in one
viewing but we will get you started :-)...
The cab received a 2" inch
chop, A pillars "swept" back, drip rails shaved/rolled,
custom cut glass, flush
mounted front/rear, one piece door glass,
modified/filled windshield cowl area w/wipers, hinged suicide
doors with lower radius corners,
Bear claw latches w/suicide locks, custom one piece 6ft
bed/cab,
integrated tailgate tilted forward 5 degrees to match
cab, extended 67 Camaro bumper flush mount with center
single exhaust outlet, Marquez Design one piece LED tail
lights, top rail caps flush/filled, custom built
aluminum tonneau cover operated by Dakota Digital
electric lift rams, custom bed inserts/tubs fitted with
ISIS controls, twin Odyssey batteries and air ride
system...
The front end received a 67 C10 front clip (front fenders, hood, grill &
core support), one piece fit to cowl, modified front roll pan with custom
lower grill, show chrome grill/headlight bezels, 67 Camaro front bumper widened 18", extensive
hood modifications with custom donor cowl induction,
interior support & bracing, polished billet Porter-Built
hood hinges, custom built inner fender aprons w/special
forward corner pockets for hidden fluid reservoirs and
electronics...
The chassis started with a rolling 72 C10
which was extensively modified using all Porter-Built
suspension components, BAER 4 wheel disc with Pro 6
piston calipers with 14" brake rotors, ACCU-AIR ride
control system and Flaming River power rack-n-pinion
steering. The frame
is stiffened using extra cross-members & frame supports
to protect the extensive body work, all chassis
components powder coated in sparkling silver and finally
rolling on 20" Colorado Custom Talladega wheels wrapped
in Toyo Proxies speed rated radial tires...
Power is provided by a fresh
GM 5.3 LS with a Comp Camshaft, Fast ECU controlled
ignition & injection, electronic Hilborn stack injectors
with interchangeable show stacks & drive filter
assemblies, polished billet Vintage Air front runner
serpentine belt system, polished Be-Cool radiator with
dual fan system, Sanderson back drop LS headers &
polished stainless Flowmaster exhaust w/Hushpower
components. Transferring the power is a fresh GM 4L60E
automatic overdrive transmission controlled by an HGM Compu-Shift
Controller, two piece center support drive line and
fresh
GM rear differential custom shortened by by Cook's
Machine Works with 3.43 Posi gears...
Now it's time to slide into a custom
fitted bucket seat interior wrapped in light grey ultra
leather, snake skin inserts and medallion accents.
Other features include
59 Impala dash assembly custom fit to the
windshield/doors, custom steel center console fitted into the dash/rear of
cab, Dakota Digital Ion instrumentation, FLAMING RIVER
polished tilt column w/Colorado Custom steering wheel, console
hidden electronics, touch button trans shifter, Kenwood DDX516 touch screen that powers the ARC Audio
amps/speakers and ISIS
Intelligent Multiplex system for all the truck functions
like, turning the ignition on and off, starting the
engine, operating all headlights, parking lights,
windows, door latches and VINTAGE AIR Gen 4 AC/Heat....
In closing, we could go on forever but with over 100 highly detailed photos and 25 minutes of video,
we think it speaks for itself. Ready to attract crowds
wherever you travel/show, it's your turn...
|
